Procedure Manual for Working at Heights
TABLE OF CONTENTS
WORKING AT HEIGHTS
I. WHAT IS THIS MANUAL?
II. WHO IS THIS MANUAL FOR?
III. WHAT DOES THE LAW SAY?
WHAT IS WORKING AT HEIGHTS?
• Definition of Working at Heights
RISKS OF WORKING AT HEIGHTS
• People Falling from Heights
• Objects Falling from Heights
• External Factors
PREVENTING THE RISKS OF WORKING AT HEIGHTS
• Planning
• Hierarchy of Controls
BEST PRACTICE GUIDELINES FOR CONSTRUCTION
• Perimeter/Edge Protection
• Exterior Work
• Frame Erection
• Scaffolds, Temporary Works and Working Platforms
• Openings, Penetrations, Risers and Shafts
• Access Methods
• Loading Platforms
• Rubbish Chutes
GENERAL SAFETY MEASURES
• Securing Materials
• Working around Water
• Ladders
SAFETY HARNESS SYSTEM
EMERGENCY RESCUE PROCEDURE
HAAD HEIGHT AWARE PROGRAMME
2
2
2
3
3
5
5
6
8
9
9
10
14
14
15
16
17
18
19
20
20
21
21
21
22
24
27
30
i. What is this manual? ii. Who is this manual for? iii. What does the law say?
The goal of the HAAD Height Aware
programme is to create awareness around
the dangers of working at heights including
how to protect people who work at heights
or who may be affected by others working at
heights. The programme aims to help workers,
supervisors and employers identify when they
or their employees are working at heights
and to know what controls to put in place to
prevent falls and falling objects.
In construction specifically falls from heights
and objects falling from heights are the top
two causes of fatal injury in the workplace.
This manual for Working at Heights helps
people identify:
• what working at heights is,
• the risks and hazards involved and
• the precautions that can be taken
to prevent falls and reduce the number of
fatalities or injuries.
The UAE Labour Law (Federal Law No 8 of
1980) states that employers shall ‘provide
adequate preventive equipment to protect
workers against the dangers of occupational
injuries’.
This includes the requirement that ‘every
employer provide the appropriate preventive
measures for the protection of workers from
risks of injuries or occupational diseases
which may occur during working hours and
against fire risks and all other risks which may
result from the use of machineries and other
equipment’.
The Abu Dhabi Emirate Environment Health
and Safety Management System gives specific
regulatory requirements for training, fall
prevention programmes and working at
heights (including scaffolding, excavations,
ladders etc.) and should be referred to for
legislative requirements. Refer to Abu Dhabi
EHSMS Regulatory Framework and relevant
Codes of Practice/Regulatory Instruments.
This manual is for all sectors and industries
where employees work at heights including
construction, agriculture and the industrial
and commercial sectors.
Who should read this?
• Chief Executive Officers (CEOs)
• Business owners
• Employers
• Contractors/subcontractors
• Health and safety personnel
• Health and safety supervisors
2
Remember: safety is
everyone’s responsibility! !
3
What is Working at Heights?
definition and examples
Definition of Working at Heights
Working at height means: Working in any place where, if precautions are not taken, a person
could fall and injure themselves. This includes places above, at or below ground level.
Working above ground level Working at/below ground level Working at a low height Working at a low height
Remember: You don’t have to fall ! from a great height to be hurt.
W
h
at is
Working
at
H
eights?
4
examples of Working at Heights
Working at Heights does not only occur in building and construction. It can occur in other
sectors and everyday situations such as:
Agriculture
Transport
Window cleaning
Installations
Oil and gas
Painting
Climbing a date
tree or using a
rope.
Working on the back of
a truck or other vehicles. Working on an unprotected ledge.
Working on a roof.
Using a ladder.
Working close to an unprotected area like excavations, pits or other openings.
5
W
h
at is
Working
at
H
eights?
Workers can easily fall and be fatally injured
if they are not wearing adequate personal
protective equipment
Risks of Working at Heights
Hazard Identification
Scaffolding collapses because it wasn’t
inspected before use
Common factors leading to incidents and
injuries include:
• Workers wearing inadequate personal pro-
tective equipment
RISK: falling/injury/death
• Unstable working platforms are used
RISK: falling
• Fragile work surfaces or openings not barri-
caded off
RISK: falling through
• Untrained workers incorrectly using safety
harness and lifeline
RISK: falling/injury/death
• Workers not trained in rescue of fall victims
RISK: permanent injury or more people
being injured
• Scaffolding not inspected before use
RISK: being defective and collapsing
• Equipment inadequate or not maintained
RISK: equipment being defective and
breaking, leading to fall
People Falling from Heights
Falls from heights are the leading cause of work-related fatalities in Abu Dhabi and accounts
for most of the serious injuries in the workplace.
Risks of
Working
at
H
eights
6

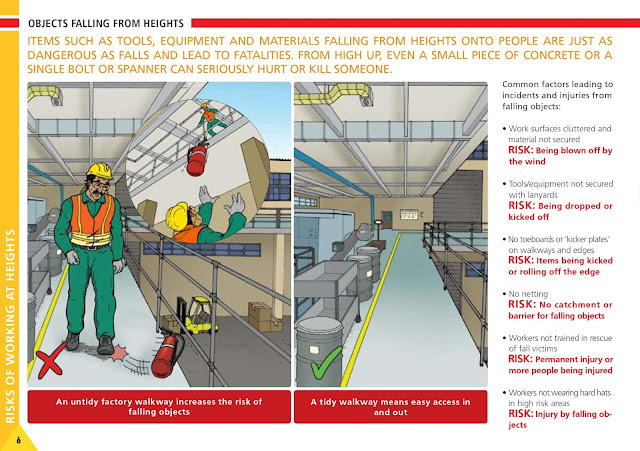

Items such as tools, equipment and materials falling from heights onto people are just as
dangerous as falls and lead to fatalities. From high up, even a small piece of concrete or a
single bolt or spanner can seriously hurt or kill someone.
Objects Falling from Heights
Common factors leading to
incidents and injuries from
falling objects:
• Work surfaces cluttered and
material not secured
RISK: Being blown off by
the wind
• Tools/equipment not secured
with lanyards
RISK: Being dropped or
kicked off
• No toeboards or ‘kicker plates’
on walkways and edges
RISK: Items being kicked
or rolling off the edge
• No netting
RISK: No catchment or
barrier for falling objects
• Workers not trained in rescue
of fall victims
RISK: Permanent injury or
more people being injured
• Workers not wearing hard hats
in high risk areas
RISK: Injury by falling ob-
jects
An untidy factory walkway increases the risk of
falling objects
A tidy walkway means easy access in
and out
Risks of
Working
at
H
eights
7
Danger from above...
Up above someone is painting. There is no exclusion
zone or signs warning of work being done up above.
The painter knocks
over the bucket
and there is no
edge protection
to prevent it
falling…
…right onto the worker walking below. He ends up in hospital with serious injuries.
A worker
walks by
without a
hard hat.
This is how it
should be done:
There is an
exclusion zone
with a correct
warning sign,
there is edge
protection and
the worker is
wearing his
hard hat.
Risks of
Working
at
H
eights
8
Wind can blow materials or
workers off
External Factors
One of the most important environmental factors when working at
heights is wind.
• Wind usually gets stronger the
higher up you go.
• Semi-constructed buildings can
create potentially dangerous fun-
nelling effects.
• Wind can blow off materials and
even workers.
Other external factors that should
be considered and included in a
safe system of work are:
• Heat stress and dehydration of
workers working at heights.
• Dust and blowing sand – causes
poor visibility and instability.
• Building movement.
• Vertigo – dizziness and feelings of
instability when working at heights.
External factors such as wind, heat stress, structural instability and worker factors
should all be considered along with control requirements as they can be the cause of falls
leading to injury.
Blowing sand causes
poor visibility Heat stress can cause falls
9
Preventing the Risks of working at Heights
Planning
Planning is a very important part of working at heights. There are three tools that enable
you to do that:
The Work Plan Review can identify a
design solution such as casting metal
‘sleeves’ into floor slabs to make the
erection of edge protection easier.
The Falls Prevention Plan should
indicate where and when barrier
protection must be set up for open
edges, holes, voids and other openings as well as signage requirements.
The Risk Assessment should include
inspection of equipment such as cradles
and personal protective equipment such
as harnesses to ensure they are suitable
and safe for the job.
A Work Plan Review must be undertaken before
a project starts to examine what is required at a
design stage to reduce and eliminate risk as far as
reasonably practical.
• All stakeholders (e.g. project managers, contractors, supervisors, and even workers) should be
involved in the review.
A written Falls Prevention Plan must be prepared
for all work to determine the hazards and controls
involved in working at heights.
• It should be provided to contractors and sub-
contractors and included in all worker induc-
tions and training.
• Audits should then be done regularly to ensure
compliance.
A Risk Assessment must be completed by all
contractors for each site or operation to identify
the hazards, the risk and the control measures
required for a project or task.
• The risk assessment must cover the hierarchy of
fall protection (See Hierarchy of Controls p 10).
• It must be approved by the Project Manager
or the person responsible for health and safety.
1 The Work Plan Review 2 The Falls Prevention Plan 3 The Risk Assessment
Preventing the Risks of working
at
H
eights
10
Hierarchy of controls
The hierarchy of controls should be followed to prevent accidents when working at heights.
AVOID
First priority is always to eliminate the
hazard or risk completely, avoiding the
need to work at height altogether.
PREVENT
Secondly try to prevent the fall by implementing the hierarchy of controls and the
appropriate preventive measures.
MINIMISE THE DISTANCE
AND CONSEQUENCES
Lastly put measures in place such as scaffolding, equipment or other means to reduce
the distance and the consequences of
a fall.
PERSONAL PROTECTIVE
EQUIPMENT
Personal protective equipment would be
the last resort since it means the wearer
is exposed to the full hazard if not used
or not used correctly. So always use the
AVOID, PREVENT and MINIMISE measures first.
Elimination
Don’t do a job at height if you
can do it on the ground.
Substitution
Substitute all defective or
dangerous equipment with
new or safer equipment.
Engineering Controls,
Isolation
Try to design out risks and
eliminate them altogether.
Administrative Controls
Use signs and exclusion zones
to keep people out of dangerous areas.
Personal Protective
Equipment (PPE)
Safety harnesses should be in
good condition and be used by
trained workers.
1
2
3
4
5
Preventing the Risks of working
at
H
eights
11
1. Elimination
If possible eliminate the need to work at height by bringing the job or work down to ground
level or by extending the reach of the worker using long-handled tools.
Examples
• Design and fit systems that prevent work-
ing at heights such as streetlights that come
down to the ground for maintenance and
cleaning.
• Long-handled tools or other equipment can
be used to carry out a task from a safe position
e.g. long-handled brush or roller for painting.
• Store materials at ground or lower levels
so that it is within reach of a person without
them having to use any aids. Lowering streetlamp for repair
Using long-handled tools instead of a ladder Storing materials within easy reach eliminates the danger of height
remember: don’t do the job at height ! if you can do it on the ground
Preventing the Risks of working
at
H
eights
12
Install guardrails before
erecting a structure
2. Substitution 3. Engineering controls
Examples
• Substitute any walking plat-
form without handrails with
one with handrails and
toeboards.
• Substitute a defective cradle
with one that doesn’t have
rust and damage.
Examples
• Use places that are already safe e.g.
places that have permanent
guardrails or a correctly de-
signed and built scaffold.
• Put on edge protection, guardrails and
screens before erecting a structure.
• Reduce the number of personnel
that have to go near the edge and the
number of times they have to go.
• Put up debris netting to catch any
falling objects.
Substitute the defective or Dangerous
equipment with new or safer equipment.
A lot of the risk involved in working at heights can be designed out. Often you can make structural changes to the
work systems or work environment that would prevent
falls and make for a safer workplace.
• Substitute a worker who
has a fear of working at
heights with someone who
is confident, trained and
has no problem working at
heights.
Replace with a new
and safer cradle
Catch nets and debris netting catch
falling objects or people
Cradle in a bad
condition
Preventing the Risks of working
at
H
eights
13
4. Administrative Controls 5. Personal Protective Equipment (PPE)
Examples
• Create an exclusion zone
to restrict access to areas
where there is work taking
place above.
• Put up clear signage to
warn people of fall areas,
open pits and unsafe con-
ditions.
• Give employees informa-
tion and training on the
standard procedures and
safety policies.
• Regularly undertake and
record maintenance, in-
spection and testing of
systems and equipment
to ensure it is suitable as
well as sufficient.
Workers must be provided with
correctly fitted and properly
maintained protective equiment
and clothing.
Administrative procedures like work permits, standard operating
procedures and safety policies should be followed to manage
and create awareness of the risks of working at heights. Training,
instruction and supervision are essential.
An exclusion zone is used to keep people out
of dangerous areas
Train workers on the proper
use of equipment
Examples
• Footwear that is suitable to prevent slips.
• Sunglasses to make sure that an employee at height
is not at risk due to glare or reflection.
• Safety helmets that will remain in place in the event
of a fall.
They must also be trained in the use and inspection
of all personal protective equipment.
Remember: personal protective equipment
should be used as a last resort. other
control measures should be used first in
order to eliminate the need for harnesses.
!
14
Standard protection – guardrail system with
toeboard and netting
Permanent edge protection on frequently
accessed area on oil rig
Advanced protection (used in high-rise construction) – full-height perimeter screens
Best Practice Guidelines for Construction
Perimeter/Edge Protection
Perimeter/edge protection is the physical barriers that are put up against edges to prevent
people or materials from falling from heights. It plays a very important role in creating a
safe workplace.
• Perimeter protection can
be screens, guardrails,
net systems as well as
aircraft cables.
• Physical barriers should
be robust.
• It can be classified as
either STANDARD or
ADVANCED depending
on the level of risk in-
volved and must meet
minimum standards set
by local legislation.
• Advanced methods ensure
protection at either 2 m
or at full floor height.
Best Pr
actice
G
uidelines for
Construction
15
Exterior work is work outside the perimeter protection such as installing or dismantling
edge protection systems. There are various protective measures that need to be put in place
to ensure the safety of workers conducting this kind of work.
Exterior Work
Exterior work taking place – workers installing horizontal catch nets
Mast climber
Ideally, boom lifts, mast
climbers or scissor lifts
should be used for this
type of work.
Safety harnesses used
When a harness is used,
the full risk assessment
and or permit system
should be followed and
rescue measures should
be in place.
Horizontal catch nets
Horizontal catch nets
should be installed close
to the structure to catch
falling persons/materials.
Lanyards used to tie
down tools
Lanyards must be used to
tie tools to belts or wrists.
Exclusion zone
An exclusion zone must
always be created.
Best Pr
actice
G
uidelines for
Construction
16
when erecting metal frame structures or formwork, various height safety guidelines need to
be followed. The process of erecting these works must be designed and thought out carefully
before work starts, with priority given to reducing work at height or REDUCING the risks.
Frame Erection
An exclusion zone
• Erection should take place
from safe working plat-
forms or mobile elevated
work platforms.
• An exclusion zone should
be created and barricades
and signage should be
used to restrict access.
• Edge protection systems
should be designed as
part of the frame erection
process to provide pro-
tection.
• Where possible, edge pro-
tection should be fitted
to beams at ground
level before they are
lifted into position.
Edge protection allows cladding to be
put into place from a safe position
Formwork is erected from
below using podium steps
Best Pr
actice
G
uidelines for
Construction
17
The scaffold tag system is used to indicate whether a scaffold has been
inspected and certified safe or unsafe for use
These should be properly planned, erected, maintained and altered by competent persons
to provide a safe working place for those working at heights. A properly erected and designed
working platform with the right design and equipment for the specific situation eliminates
the need for fall arrest equipment. However, fall arrest equipment must be used in the erection,
altering and dismantling of scaffolding.
• They must be assessed before
use and inspected regularly.
• Adequate cross-bracing must
be provided and the structure
must be secure and stable.
• They must have safe and clearly
defined means of access e.g.
stairs or ladders.
• There should be no gaps be-
tween the planks in the decking.
• They must have guardrails,
midrails and toeboards on
all open sides or platforms.
• There should be netting or
fencing where materials can fall
over toeboards.
Scaffolds, Temporary Works and Working Platforms
Safe scaffolding
Cross-bracing
Safe means of access
scaffold tag
Edge protection with netting
Catch nets
Best Pr
actice
G
uidelines for
Construction
18
Timber and mesh locked gate prevents
unauthorised entry Mesh cast into slab around riser
Openings, Penetrations, Risers and Shafts
All openings need to be covered or protected so as to prevent anyone from falling through
them. Protective measures on openings can only be removed when work is taking place in or
around the opening and those doing the work have taken sufficient safety precautions.
Lift Shafts
• Openings to lift shafts must be fully protected
with a secure and tamper-proof full height
system preventing unauthorised entry.
• Safe working platforms must be provided to
all those working in lift shafts.
Penetrations and Risers
• Penetrations and risers must be limited in size
and number as far as reasonably practical.
• During construction a mesh cast must be fitted
or other robust protection such as metal
guardrails or covers placed at each level
below the level of construction to prevent
persons or materials falling through.
Floor Openings
• Must be protected with a clearly marked,
robust, and securely fixed cover.
• The size of the hole will determine what kind
of protective measures will need to be taken,
from suitable wooden or steel covers, to
mesh cast across the hole, to double hand-
rails and toeboards all around with a net
across the hole.
A securely fixed cover protects an opening in the floor
Roof openings have a different type of
protective measure
Best Pr
actice
G
uidelines for
Construction
19
Using a bosun’s chair to wash a window
Access methods
A suitable means of access should be chosen to go to and from work at height that is as safe
and secure as possible. Permanent access is always the most secure option. All persons working on suspended or mechanical access systems must wear fall protection equipment.
• Permanent access should be provided wherever
possible. If this is impractical, adequate temporary
staircases can be used.
• All vertical access must have permanent handrails
and guardrails on both sides.
• There must be sufficient lighting.
• Vertical access must be kept clean and clear
of materials or equipment that could obstruct
stairways.
Cleaning windows from a mast climber
• These include hoists, mobile elevated working
platforms (e.g. cherry picker) and scissor lifts.
• They must have guarding that is strong, sturdy
and fit-for-purpose.
• The equipment must be inspected regularly
and only used by competent and trained workers.
• Workers need to wear safety harnesses as
secondary fall protection.
• Minimum clearance distances should be ad-
hered to when the equipment is used near over-
head electrical cables.
Permanent stairs with handrails
and guardrails
• These include bosun’s chairs, cradles, gondo-
las and swings.
• They should only be used if there are no other
safer methods.
• Equipment must be inspected before use and
only used by competent and trained workers.
• An exclusion zone must be set up below the
equipment at ground level.
• Harnesses must be worn and there must be a
rescue procedure in place.
Suspended Access Mechanical Access System Vertical Access
Best Pr
actice
G
uidelines for
Construction
20
Loading Platforms and Rubbish Chutes
The danger of falling objects or falls from heights is ever present, especially on Construction
sites. Loading Platforms and Rubbish Chutes are two additional areas on site that can prove
hazardous if the correct protective measures are not taken.
Loading Platforms
• Must be fitted with guardrails on all
sides where people or materials can fall.
• Must be checked before installation
and weekly thereafter.
Rubbish Chutes
• Rubbish chutes, skips, and dumpsters
used for rubbish disposal from upper
floors must be properly installed,
secured and fenced off.
Installing a compliant loading platform
Rubbish chute system with
barriers
21
Working above water on an oil rig
There are general safety measures that can be followed in all industries such as securing
materials so that they don’t present a falling hazard. Any work around water also needs
additional precautions to reduce or eliminate the risk of drowning.
General Safety Measures
Toolbox secured with lanyard
Securing Materials
• Materials that can be blown or swept off
roofs, exposed floors or scaffolding should be
secured. This also includes materials or plant
that can be dislodged by work activities.
Working around Water
Where water is present (i.e. in excavations,
work next to or above water or for dredging
or reclamation):
• A detailed risk assessment must be done
and workers who can swim should be allocated
the job/tasks to be done.
• Physical barriers should be put in place to
prevent access or people and equipment falling in.
• Suitable training should be given such as ‘man
overboard’ recovery.
• Rescue equipment such as flotation devices
must be easily accessible in case of an emergency.
Exposed materials secured
Gener
al Safety
M
e
asures
22
Ladders
Falls from ladders occur very often. Ladders should only be used if no other safer equipment
(such as scissor lifts or podium steps) can be used. Those involved in the use of ladders must be
trained and competent.
Ladder condition
• The ladder must be in good condi-
tion and inspected before use.
• Good condition means there are no
broken, cracked or missing rungs,
no broken braces, no cracks or rust
anywhere and the ladder is not bent.
• Never paint wooden ladders as the
paint may hide faults.
Never construct your own ladder
Don’t work from the top
three rungs of a ladder
Ladder is secured and used
for short duration work
• Ladder rungs need to be clean and
free of grease or oil to prevent slips.
• Never construct your own ladder
or carry out makeshift repairs to
a damaged ladder; use only well-
constructed purpose-built ladders.
• Ladders should be inspected on a
regular basis by a competent person.
Gener
al Safety
M
e
asures
23
Ladders
Ladder use – Good Practice
• Avoid carrying materials or tools up
and down a ladder. Keep three
points of contact to the ladder as
much as possible.
• Don’t set it up near a passageway,
doorway, or other place where a
person, vehicle or load might strike it.
• It must stand on a level, stable and
non-slippery surface. If the ground
is soft or uneven, wide planks can be
used as a base.
• It must be secured at the bottom
and the top to keep it from slipping
or falling back.
• It must be long enough. Don’t stand
on the top three rungs of the ladder.
• Ladders must only be used by one
person at a time.
• Face the climbing side of the ladder
when going up or down.
Additional precautions
• Don’t use aluminium ladders where
there are live electrical facilities.
• Don’t use ladders near other fall
hazards such as edges or voids i.e.
don’t use ladders on scaffolding to
create extra height.
• Don’t use ladders outside in very
windy conditions or bad weather.
Keep three points of contact to
the ladder as much as possible
Don’t use aluminium
ladders near live wires
Don’t use ladders in windy
conditions
! Only use ladders for low risk, short duration work. Don’t work from a ladder for more than 30 min. at a time.

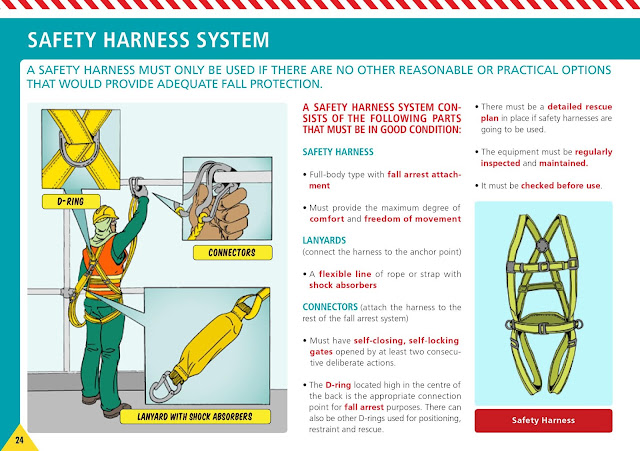

A safety harness system consists of the following parts
that must be in good condition:
Safety harness
• Full-body type with fall arrest attach-
ment
• Must provide the maximum degree of
comfort and freedom of movement
Lanyards
(connect the harness to the anchor point)
• A flexible line of rope or strap with
shock absorbers
Connectors (attach the harness to the
rest of the fall arrest system)
• Must have self-closing, self-locking
gates opened by at least two consecu-
tive deliberate actions.
• The D-ring located high in the centre of
the back is the appropriate connection
point for fall arrest purposes. There can
also be other D-rings used for positioning,
restraint and rescue.
Safety Harness System
d-ring
connectors
lanyard with shock absorbers
A safety harness must only be used if there are no other reasonable or practical options
that would provide adequate fall protection.
• There must be a detailed rescue
plan in place if safety harnesses are
going to be used.
• The equipment must be regularly
inspected and maintained.
• It must be checked before use.
Safety Harness
24
Safety Harness
System
25
Anchor point high. Worker doesn’t fall far.
• Before workers move into
an unsafe position they have
to be attached to a secure
anchor point.
• The anchor point must be in-
dependent of any platform
anchorage, capable of sup-
porting the worker and not
used to anchor anything else.
• The position of the anchor
point will determine how far
the person will fall (the fall
factor).
• Best practice is to have the
anchor point as high as
possible (above the head)
to reduce the fall distance.
• Good practice is to have the
anchor point at the same
level as the back attach-
ment point where the har-
ness attaches.
Anchor Points
Anchor point low. Worker falls far.
Harness systems can only be used if there are secure anchor points in suitable positions. The worker’s harness needs to be ! attached to an anchor point via a single or double lanyard and connector.
Safety Harness
System
26
Primary arrest: The safety harness
stops the worker’s fall
Different uses of safety harness
Fall arrest
The harness can stop a fall either through:
• Primary arrest – harness has to be deployed to
stop fall.
Work Restraint
The harness prevents a fall by restricting the
move- ment of the worker. A waist belt can
be used.
It can be set up so that worker can go close to
edge (fall restraint) or so that worker can’t move
at all (travel restraint).
or
• Secondary arrest – safety nets or airbags are
installed below work a area to stop fall before
safety harness can be deployed e.g. on an
unprotected edge.
The waist belt prevents the worker from
moving far enough to go over the edge
Secondary arrest: The air bag stops the
worker’s fall
27
Emergency Rescue Procedure
Even though the goal is always to prevent all incidents, they do occur. In case of an
emergency, quick action and smart thinking are of the utmost importance. The following
should be considered:
• A rescue plan or procedure must be included in
the fall prevention plan and risk assessment.
• The procedure must be regularly assessed and
updated if necessary.
• Fully trained rescue teams must be available to
carry out a rescue quickly – do not rely on emer-
gency services exclusively.
• Speed and care are important to minimise suspen-
sion trauma when a fall has been stopped through
the use of a safety harness. Suspension trauma
occurs when a person is suspended for a prolonged
period of time and it could lead to death due to in-
sufficient blood flow to the brain and heart. The
aim is always to get the person down safely in the
shortest possible time.
• An effective way of communication must be set
up. Rescuers must be able to communicate with
the casualty at all times.
• Avoid placing additional personnel at risk during
a rescue.
• Ensure that all employees are provided with infor-
mation and training in emergency procedures.
Emergency
Rescue Procedure
28
he hooks on securely
but falls...
the Worker receives his task...
the rescue team comes running.
help!
An Emergency Rescue...
Emergency Rescue Procedure
29
rescue services arrive.
he is rescued quickly.
he is placed into THE
recovery position.
HAAD Height Aware Programme
Height Aware – the safe working at heights and falling objects prevention programme
– has been developed to help everyone. Anyone can register to receive free support and
materials from HAAD.
With this manual you will have received a DVD summarising the important points of
working at heights which can be used for training health and safety personnel as well
as workers. Worker and supervisor pamphlets and posters are also available.
For more details and to register for additional free material, visit our website:
The following materials form part of the ‘Height Aware’ programme:
• Working at Heights Procedure Manual for HSE professionals (English, Arabic)
• Working at Heights DVD with HSE professionals animated training video (English, Arabic)
and workers animated awareness video (English, Arabic, Bengali, Urdu, Hindi, Malayalam)
• Workers Awareness Pamphlet (English, Arabic, Urdu, Bengali, Hindi, Malayalam)
• Supervisors Awareness Pamphlet (English, Arabic)
• A1 Educational Posters (English and Arabic, multi-language Asian
(Bengali, Urdu, Hindi and Malayalam)
• Bilingual roll up promotional banner (English and Arabic)
• Working at Heights CD with high resolution pdf files of all materials
for printing.
• Height Aware Website (English, Arabic)
Mine Illumination
and
Solid-State Lighting
Dr. John J. Sammarco
NIOSH
Pittsburgh Research Laboratory
Agenda
◆ Why is lighting important?
◆ Age and vision
◆ History of lighting
◆ Lighting safety & accidents
◆ High brightness light emitting diodes
(HB LEDs)
◆ NIOSH lighting research
Why look at mine lighting?
Mining…“the most difficult lighting
environment in the world”
Illumination Engineering Society of North America, 2003.
◆ Miners depend heavily on visual cues to spot hazards
◆ Aging workforce
◆ Accidents
Why look at mine lighting?
Age Effects on Vision
◆ Night vision decreases with age
• Smaller pupil
• Eye less able to adapt to light
• Fewer rod receptors
• Cloudy eye lens
Age Effects on Vision
Yellowing of Lens
(age in years)
Degradation of lens
decreases effective light
level and effective contrast
(due to scatter)
Average miner 43 yrs old
40% less light than 20 yrs old
◆ Improved lighting may help miners avoid accidents:
• Slip/trip/falls
• Falls of ground
• Striking/pinning
◆ An MSHA study of metal/nonmetal mining concluded that
current lighting systems are inadequate.
Why look at mine lighting?
Safety & Lighting
The percentage of accidents declines as illuminance is
increased in industrial (non-mining) work areas
Source (Walton et al., 2005)
Candle holders
with candles
A Brief History of Lighting
Oil wick lamps improved safety
by containing open flames. Costs
were also lower, and miners
found them easier to use than
candles.
Photos: Royal BC Museum, British Columbia, Canada, http://www.royalbcmuseum.bc.ca/
Oil Lamps
Photo: Royal BC Museum, British Columbia, Canada, http://www.royalbcmuseum.bc.ca/
Quotation: Where the Sun Never Shines, Priscilla Long, Paragon House, New York, 1989.
The transition to helmet-mounted
lighting began with the introduction
of the carbide lamp.
Carbide lamps
The introduction of the
incandescent lamp eliminated
concerns about open
flames within the mine.
The light from a small, steadily
burning incandescent filament
was much more controllable
than the light from an open
flame. Enclosed within a
directional reflector, it became
the standard, unchanged to
this day.
Photos: Royal BC Museum, British Columbia, Canada, http://www.royalbcmuseum.bc.ca/,
Cape Breton Mine Museum, www.minersmuseum.com
Incandescent Lights
What is light?
What is light?
Electromagnetic radiation
Light Spectrum
◆ White light from LEDs
• Shorter wavelenghts
• Bluish-white light
• Better depth perception
• Better color rendering
• Better visual performance
Spectral Power Distribution
Lighting technologies
Type Life
(hrs)
Cost Specular*
color
temp.
Efficiency
(lumens/watt)
Shock proof
Incandescent 1,500 $7 2800oK 14 no
Halogen 2,500 $6 3200oK 24 no
HID 10,000 $20 4000oK 80 no
Solid-state
LED
50,000
+
$8 5500oK 70
(prototypes @
110)
yes
•Lower specular color temperatures indicate a yellowish light;
•higher temperatures indicate a whiter light.
Light Emitting Diodes (LEDs)
LEDs are semi-conductors; they don't have a filament that will burn out.
They are illuminate by the movement of electrons in a semiconductor.
LED’s
Luminaires
Light Emitting Diodes (LEDs)
• Advantages:
1. Lower power requirements
2. Long Life (>50,000 hours)
3. Small size
4. Sturdy
5. “White, shorter
wavelength” light
NIOSH
Mine Lighting Research
Reducing underground mining
mishaps by improving
mine illumination
Project Scope
Underground lighting:
◆ Cap lamp (coal)
◆ Preblast lighting (metal/nonmetal)
◆ Machine lighting (coal)
Cap Lamps
LED Cap Lamp
2 lb. battery, 5 year LED life
Additional Personal lighting
5 lb. battery
Machine Lighting
Preblast Lighting
◆ inspect roof & back
◆ loading of explosives
Specific aim summary
◆ Does the color (spectral power distribution)
from white LEDs:
• Improve visual performance?
• Reduce glare?
◆ Can advantages of LEDs (small, robust, high
efficiency, etc) enable new designs to:
• Improve visual performance?
• Reduce glare?
• Realize new safety applications?
NIOSH
Mine Illumination Lab
Glare tests
Peripheral motion detection
Slip/trip/fall hazards
Mean time to detect an object
Incandescent cap lamp was slowest
Lighting prototypes
Questions
Fantastic information with essential substance, and it is fundamental to consider the info reliant on web diaries. All central issues of upgrade preparation are terrific. Picture subtleties are in a like way significant—thank you for this necessary information. Reach Forklift Training
ReplyDeleteForklift man cage London You made such an interesting piece to read, giving every subject enlightenment for us to gain knowledge. Thanks for sharing the such information with us to read this...
ReplyDeleteEye protection should be your first choice, especially if you work in an environment that requires you to wear safety glasses. In your work situations, prescription safety glasses can be considered protective eyewear. Prescription safety glasses
ReplyDeleteThe information you've provided is useful because it provides a wealth of knowledge that will be highly beneficial to me. Thank you for sharing that. Keep up the good work. Safety Helmet Supplier
ReplyDeleteThis post is so helpful. Thanks for sharing. Custom erp software development
ReplyDeleteThese are very helpful post visit https://whalley-law.com
ReplyDeleteThanks for sharing your knowledge. NEBOSH Diploma training programs that are designed to prepare individuals for a successful career in health and safety.
ReplyDeleteTeach all workers who work at heights, the proper theory and practical protection training to help keep them safe in their workplaces.
ReplyDeleteIt is a professional, highly qualified, and experienced organization providing a wide range of ISO certification services in Singapore an effective and efficient manner.
ReplyDelete
